Description
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Lexus | IS Series | 2001, 2002, 2003, 2004, 2005 |
Compatibility List:
- Compatible With Lexus IS300 (XE10) 2001 2002 2003 2004 2005
- 52mm Mono-Tube Stainless Steel Shock With 16 Levels of Damping Adjustment Corresponds to Daily Driving Scene To The Sunday Track
- Performance Internal Piston With Koyo Japan 6204z Bearing Provides Smooth Stroke; Powder Coated CNC Machined Aluminum And Carbon Steel Accessories
- Independent Spring Tension And Height Adjustment; Racing Grade Shock Oil With High Viscosity Index; Shock Absorber Can Be Rebuilt When Worn Out
- Full 1 Year Limited Warranty From Date Of Purchase; Install By Experienced Professionals Is Highly Recommended
Affordable priced coilover damper kit features 16 levels of damping adjustment, full length adjustable, and aluminum parts.
Details:

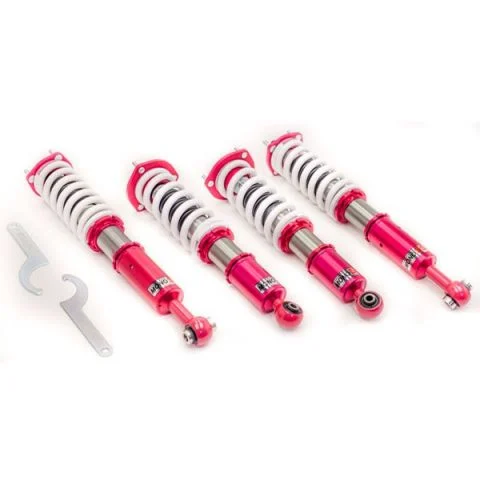

Godspeed Project’s MonoSS is a unique member of our family of single-adjustable coilover suspension kits. These coilovers are engineered to provide a streetable, race-ready suspension at an affordable price. They feature a 52mm carbon seamless steel monotube damper with a performance internal piston for maximum damper response. The cold-bent springs are made from high-strength SAE9252 steel to optimize the balance between performance and comfort. Using race-quality shock oil, Godspeed Project ensures exceptional damper performance at any temperature, on or off the track.
The top of the shock mounts to the car using a high-quality top hat equipped with a high-performance Japanese KOYO 6204Z bearing pillow ball mount (when applicable). The lower brackets are made from T7075 forged aluminum or carbon steel for lighter weight without sacrificing durability and may include brake line brackets (when applicable). The MonoSS coilovers offer 16 levels of damper adjustability to fine-tune your ride to your preference.
Key Features:
- Front camber plates with pillow ball mount for camber adjustment
- 16 precise levels of damper adjustment
- Koyo Japan 6204z bearing
- Polyurethane bushing (if applicable)
- Monotube shock design
- Anodized shock body
- Lightweight aluminum lower mount and T7075 forged aluminum / carbon steel brackets
- 52mm carbon steel shock body with a performance internal piston
- Independent ride height and spring preload adjustments
- Race shock oil with a high viscosity index
- 1 Year Warranty from Date of Purchase
| Front | Rear | |
|---|---|---|
| Spring Rate (kg/mm) | 12 | 10 |
| Spring Length (mm) | 200 | 220 |
| Spring I.D. (mm) | 62 | 62 |
| Camber Plate | No | No |
Application:
2000, 2001, 2002, 2003, 2004, 2005 Lexus IS300 (SXE10)
Additional Information:
- Special Notes: Prior to installation, verify all hardware, properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
- Damping Levels: 16-Level
- Height Adjustment: Yes
- Spring Rate (Front): 12 kg/mm (672 lbs/inch)
- Spring Rate (Rear): 10 kg/mm (560 lbs/inch)
- Spring Length (Front): 200 mm
- Spring Length (Rear): 220 mm
- Front Top Mount: Yes, Standard Type
- Rear Top Mount: Yes, Standard Type
- Spring Inner Diameter (Front): 62 mm (2.44 inch)
- Spring Inner Diameter (Rear): 62 mm (2.44 inch)
- Warranty Note: N/A
- User Guide: Coilover User Guide
