Description
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Mitsubishi | Evolution | 2003, 2004, 2005, 2006, 2007 |
Compatibility List:
- Compatible With Mitsubishi Lancer Evolution 7/8/9 (CT9A) 2003 2004 2005 2006
- Full Length Adjustable, Independent Ride Height And Spring Tension Adjustment
- Mono-Tube Shock With 40 Precise Levels of Damping Force Adjustment – Suitable For Street And Track
- Large Capacity 52mm Steel Shock Body With Anti-Corrosion Coating
- Aluminum And Steel Hardware Accessories; SAE9252 Steel Performance Springs
- Italian IP F.A. Made Shock Oil Offers High Viscosity Index For Durability And Performance
- Shock Absorbers Are Replaceable; Spare Parts Available
- Includes Full 1-Year Limited Warranty From Date Of Purchase (Parts Only)
Reasonably priced coilover damper kit features 40 levels of damping adjustment, a 44mm internal piston, full-length adjustability, and lightweight aluminum components.
Details:

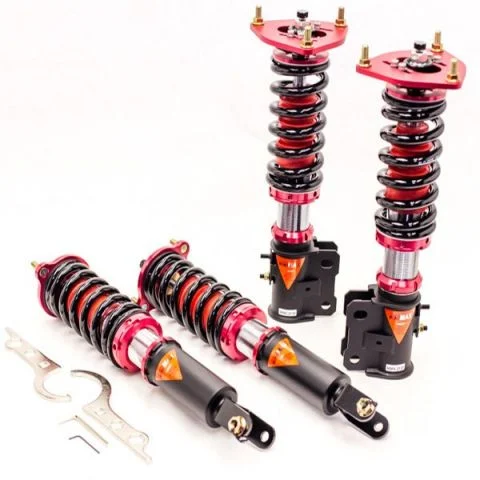

The Godspeed Project MAXX coilover for 2003–2006 Mitsubishi Evolution 7/8/9 is for the tuners that want a track-oriented setup that also provides daily commute comfort. With 40 levels of damping valve adjustment, you can easily adjust from stiff to soft simply by twisting the knob. Featuring mono-tube design with large capacity 52 mm dia. JIS seamless carbon steel shock body filled with IP F.A. 5W damper oil with properly valved 44 mm internal pistons to endure competitiveness on a track course or daily spirited driving on public road.
Cold wound springs are made from high tensile SAE9252 steel to ensure durability. Vehicle ride heights are adjusted with lower brackets to offer maximum shock travel in order to provide comfort compared to lowering springs alone. Mostly billet aluminum hardware accessories are used for their weight-saving property to reduce overall weight of the coil-over system yet remain durable. All parts are replaceable, and most importantly, shock absorbers can be rebuilt for customization or simply purchase a replacement cartridge without spending too much on a complete new coil-over system. You will experience quicker response times, improved bump absorption, and increased grip to enhance safety when pushing your car to the limit!
Features:
- 40 precise levels of damper adjustment
- Mono-tube Design With Anodized Shock Body
- Lightweight aluminum shock components and T7075 forged aluminum / carbon steel brackets
- 52 mm carbon steel shock body with a 44 mm internal piston
- Independent ride height and spring pre-load adjustments
- Italian IP F.A. made shock oil with a high viscosity index
- Front camber adjustable plates are included (where applicable)
Installation Note:
Prior to installation, verify all hardware is properly tightened and spring preload is set to 10 mm. Our technical department is available to assist with any questions.
Additional Information:
- Special Notes: Prior to installation, verify all hardware and properly tighten and spring preload is set to 5–10 mm (1/4–3/8 in). Our technical department is available to answer any other questions.
- Damping Levels: 40-Level
- Height Adjustment: Yes
- Spring Rate (Front): 14 kg/mm (784 lbs/inch)
- Spring Rate (Rear): 10 kg/mm (560 lbs/inch)
- Spring Length (Front): 180 mm
- Spring Length (Rear): 180 mm
- Front Top Mount: Yes, Pillow Ball Camber Plate
- Rear Top Mount: Yes, Standard Type
- Spring Inner Diameter (Front): 62 mm (2.44 inch)
- Spring Inner Diameter (Rear): 62 mm (2.44 inch)
- Warranty Note: N/A
- User Guide: Coilover User Guide
