Description
Vehicle Fitment
| Make | Model | Year |
|---|---|---|
| Mitsubishi | Evolution | 2008, 2009, 2010, 2011, 2012, 2013, 2014 |
Compatibility List:
- Compatible With Mitsubishi Lancer Evolution X (CZ4A) 2008 2009 2010 2011 2012 2013 2014 2015 (Evo X)
- Full Length Adjustable, Independent Ride Height And Spring Tension Adjustment
- Mono-Tube Shock With 40 Precise Levels of Damping Force Adjustment – Ideal For Street And Track
- Large Capacity 52mm Steel Shock Body With Anti-Corrosion Coating
- Aluminum And Steel Hardware Accessories; SAE9252 Steel Performance Springs
- Italian IP F.A. Made Shock Oil Offers High Viscosity Index For Daily And Track Use
- Shock Absorbers Are Replaceable; Replacement Parts Available
- Includes Full 1-Year Limited Warranty From Date Of Purchase (Parts Only)
Reasonably priced coilover damper kit features 40 levels of damping adjustment, 44mm internal piston, full-length adjustability, and aluminum components for lightweight strength.
Details:

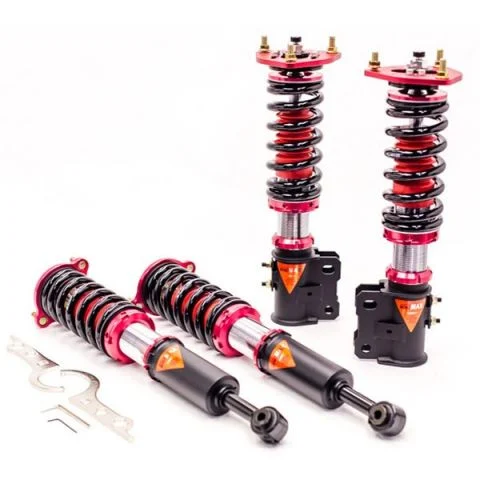

The Godspeed Project MAXX coilover for 2008–2015 Mitsubishi Evolution X is designed for tuners who demand a track-oriented setup that also offers comfort for daily commuting. With 40 levels of damping adjustment, it’s easy to fine-tune the suspension by simply twisting the knob. The mono-tube design uses a large-capacity 52 mm JIS seamless carbon steel shock body filled with IP F.A. 5W damper oil and 44 mm internal pistons—ideal for competitive track use or spirited daily driving.
Cold wound springs are crafted from high-tensile SAE9252 steel for lasting performance. Ride height is adjusted via lower brackets to maximize shock travel and comfort, outperforming traditional lowering springs. Most hardware accessories are billet aluminum, offering reduced overall system weight without sacrificing durability. All parts are replaceable, and the shock absorbers are rebuildable, allowing you to refresh or customize your setup without buying a whole new coilover kit. You will experience quicker response times, better bump absorption, and increased grip when pushing your Evo X to its limits.
Features:
- 40 precise levels of damper adjustment
- Mono-tube Design With Anodized Shock Body
- Lightweight aluminum shock components and T7075 forged aluminum / carbon steel brackets
- 52 mm carbon steel shock body with a 44 mm internal piston
- Independent ride height and spring pre-load adjustments
- Italian IP F.A. made shock oil with a high viscosity index
- Front camber adjustable plates are included (where applicable)
Additional Information:
- Special Notes: Prior to installation, verify all hardware and ensure spring preload is set to 5–10 mm (1/4–3/8 in)
- Damping Levels: 40-Level
- Height Adjustment: Yes
- Spring Rate (Front): 12 kg/mm (672 lbs/inch)
- Spring Rate (Rear): 10 kg/mm (560 lbs/inch)
- Spring Length (Front): 180 mm
- Spring Length (Rear): 180 mm
- Front Top Mount: Yes, Pillow Ball Camber Plate
- Rear Top Mount: Yes, Standard Type
- Spring Inner Diameter (Front): 62 mm (2.44 inch)
- Spring Inner Diameter (Rear): 62 mm (2.44 inch)
- Warranty Note: No
- User Guide: Coilover User Guide
