5.5 inch Suspension Lift Kit – Level 2

Description

5.5″ Suspension Lift Kit for 66-77 Early Ford Broncos – This lift kit raises the suspension by approximately 5.5 inches from the stock position.

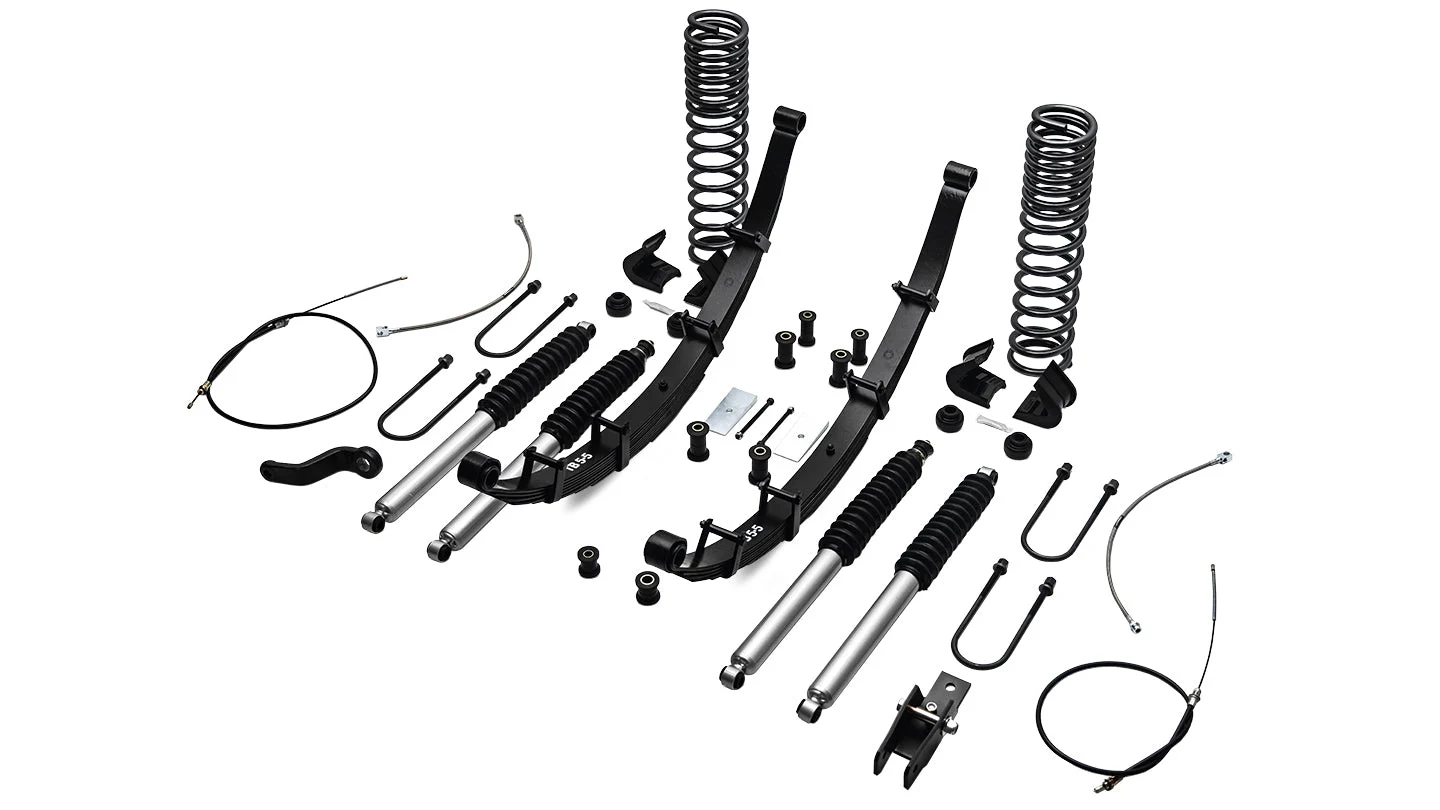

Included in the Early Bronco Lift Kit:

• 5.5-inch Progressive Rate Long Travel Coil Springs
• 14-piece 7 Degree C-Bushing Kit (C-Bushings, Radius Arm Rear Bushings, Track Bar Bushings with Sleeves)
• Tracking Bar Drop Bracket
• 5.5-inch Lift 11-pack Rear Progressive Rate Leaf Springs
• 6 Degree Leaf Spring Shims
• 4-inch Drop Pitman Arm
• Extended Driver & Passenger E-Brake Cables
• Extended Front Center Brake Hose
• Extended Rear Center Brake Hose
• Leaf Spring & Shackle Bushings
• Heavy Duty U-Bolts
• 4X TBP Nitro X Gas Charged Shock Absorbers

Deluxe Kit also includes:

• Upgraded 5/8-inch U-Bolts with HD U-Bolt Retainer Plates
• Leaf Spring & Shackle Mounting Hardware
• 2 x OE Style Shackles
• Adjustable Draglink (Only for 66-75 applications)
• Adjustable Tracking Bar
• Radius Arm Drop Brackets

NOTE: When lifting your Bronco 3.5 inches or more, you will need to extend your front and rear drivelines if you have the stock 3-speed or C4 Auto Transmission. For your convenience, we offer extended drivelines as an option when adding this item to your cart. If you plan to use your Bronco off-road with this lift, we highly recommend a high pinion front differential or a high-angle driveshaft to prevent driveshaft angle issues.

The Bronco shown in the reference photo has a 5.5-inch lift and 37×12.50 tires.
