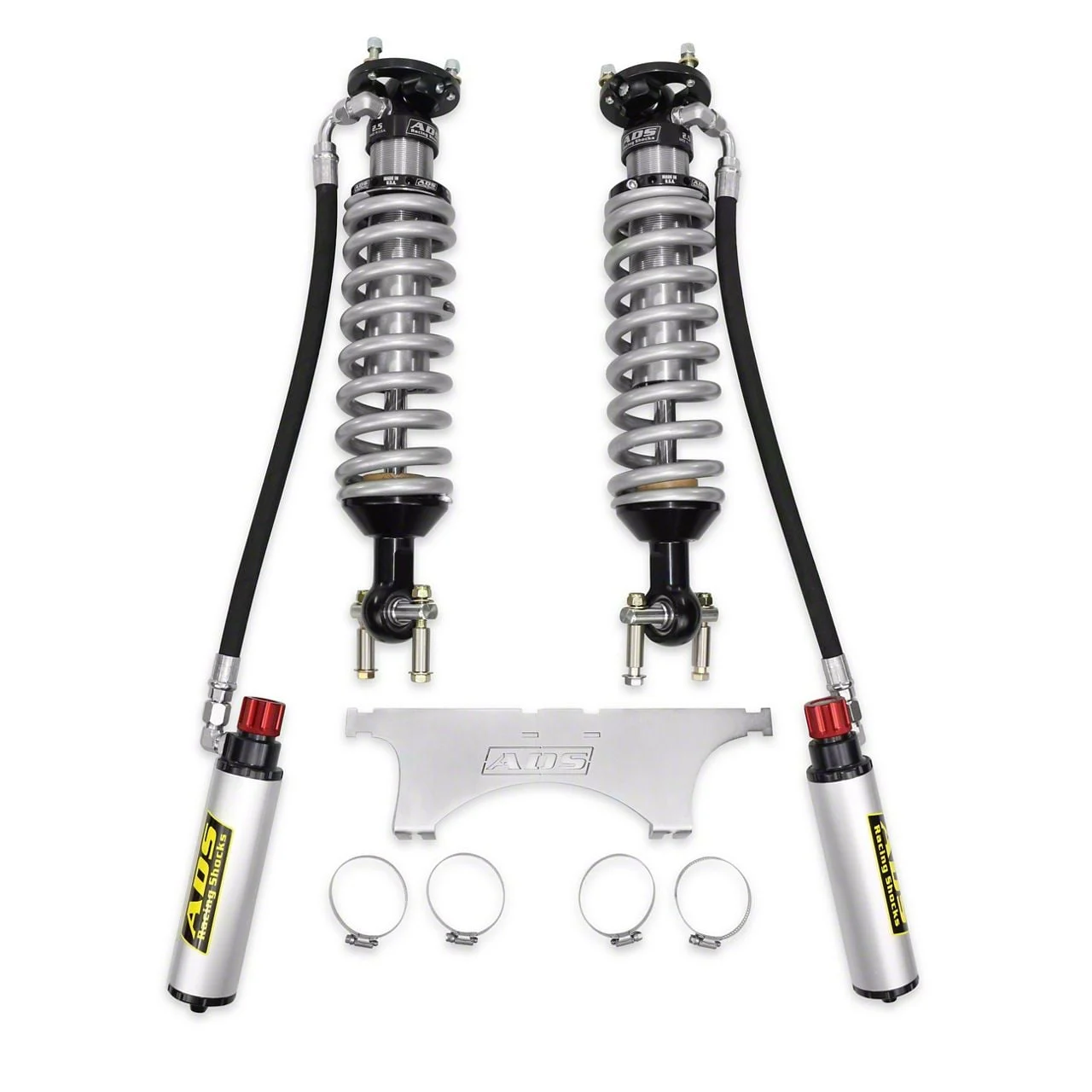

Advanced Off-Road Suspension. The ADS Racing Shocks Direct Fit Race Front Coil-Overs with Remote Reservoir and Compression Adjuster are precision-engineered to elevate your vehicle’s off-road capabilities. These coilovers offer adjustable ride height and compression to optimize handling and comfort on rugged terrains.
Durable Construction. Crafted from high-quality steel with an electric zinc plating and ceramic coat finish, these coilovers resist corrosion and wear. The anodized aluminum reservoir, hard-chrome plated shafts, and powder-coated steel springs ensure long-lasting performance and a premium appearance.
Easy Installation. Designed as a direct fit with included mounting hardware, installation is straightforward without requiring drilling. However, aftermarket upper control arms are necessary to accommodate the 1-3 inch front lift these coilovers provide.
Application. Specifically designed to fit 2019-2023 Ford Rangers, delivering enhanced front suspension performance and adjustability.
ADS Racing Shocks 250-19RNF-A00
CA Residents: WARNING: Cancer and Reproductive Harm
- Active Or Passive Suspension Passive
- Adjustable Compression Yes
- Adjustable Rebound Yes
- Adjustable Reservoir Yes
- Adjustable Ride Height Yes
- Body Diameter 2.5 In
- Body Finish Electric Zinc Plated W/ Ceramic Coat
- Body Material Steel
- Boot Included No
- Category Suspension
- Collapsed Length 17.507 In
- Drivetrain 2wd/4wd
- Emission Code 6
- Extended Length 22.526 In
- Gas Charged Yes
- Grade Type Performance
- Hose Length 24 In
- Hose Material Rubber
- Hose Outer Diameter 0.875 In
- Includes Bump Stop Yes
- Internal Construction Type Mono Tube
- Internal Rebound Bumper No
- Internal Rebound Spring No
- Lift Range 1-2.5 In
- Lower Mount Type T-Bar
- Mounting Hardware Included Yes
- Part Type Suspension Shock Absorber
- Position Front
- Quantity Sold As A Pair
- Requires Uca Yes
- Reservoir Diameter 2.5 In
- Reservoir Finish Anodized
- Reservoir Length 8 In
- Reservoir Material 6061 Aluminum
- Reservoir Type Remote
- Shaft Diameter 0.875 In
- Shaft Material Hard-Chrome Plated Steel
- Shock Travel Extended Travel
- Spring Color Silver
- Spring Finish Powdercoated
- Spring Included Yes
- Spring Material Steel
- Spring Rate 600 Ppi
- Stroke 5 In
- Sub Category Shocks And Struts
- Travel Length 5.019 In
- Type Coilover
- Upper Mount Type Mounting Plate
- Valving Type Progressive
- Weight 62 Lb
- Fits 19-23 Ranger Aftermarket Upper Control Arms Required Provides 1-3 Inch Front Lift
