Davies Craig Temperature Sensor Inline Adapter Kit; 35mm (Universal; Some Adaptation May Be Required)

Description

Easy Temperature Sensor Installation. The Davies Craig Temperature Sensor Inline Adapter Kit 35mm provides a practical and economical solution for installing temperature sensors directly into the top radiator hose. It allows precise fitting for accurate engine temperature monitoring, enhancing the effectiveness of cooling system components. This adapter ensures secure, leak-proof sensor installation without complex modifications.

Construction and Appearance. Constructed from durable materials designed to withstand engine bay conditions, the adaptor features a robust compression fitting with extra rubber sleeves for hose size adaptability. It comes with components finished in corrosion-resistant materials suited for continuous use in automotive cooling systems.

Installation. Installation is straightforward and requires no drilling, utilizing a compression fitting to ensure a watertight seal. Simple hose section removal and clamp fitting make this kit accessible for both professional and enthusiast installers.

Application. The adapter kit fits universally with some adaptation depending on radiator hose diameter and sensor specifications, allowing compatibility with various temperature sensors and gauge senders utilizing 5mm or 6mm diameters with 1/4″ NPT threads.

Davies Craig DC-0409

CA Residents: WARNING: Cancer and Reproductive Harm

• Simple Economical Adaptor Kit Allows Easy Fitting Directly Into Top Radiator Hose
• Probe Fits Into Compression Fitting
• Remove About 17mm (2/3”) Of Radiator Hose To Fit Adaptor Between Hose Ends
• Kit Includes Components For Watertight And Effective Probe Installation
• Extra Rubber Sleeves Enable Fitment To Radiator Hose Sizes From 32mm To 40mm (1¼” To 1½”) Diameter
• Suits All Temperature Sensors With Either 5mm (3/16”) Or 6mm (1/4”) Outside Diameter And Temperature Gauge Senders With 6mm (1/4”) NPT Thread
• Adaptor Ends For Hose Fitting Are 35mm In Size
• 3mm Adaptor Sleeve Included In Kit Can Increase Hose Size To 41mm To 44mm
• 6mm Adaptor Sleeve Optional To Increase Hose Size To 47mm To 50mm
• Two 1/4″ NPT Holes Allow Fitment Of Sensor And Or Air Bleed
• Bung Included If Only One Hole Is Needed

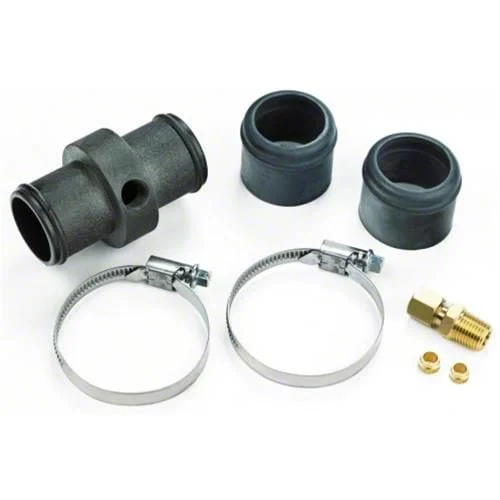

• Kit Contents Include Inline Adaptor, Sleeves, Olives, Compression Fitting, Hose Clamps, And Instructions
• Suits Specific Thermal Switches Using 5mm Or 6mm Olives As Required
• Fits Universally; Some Adaptation May Be Required
