Description

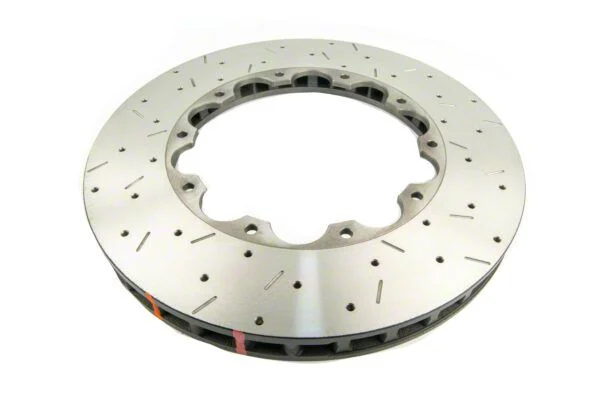

High Performance Brake Ring. The DBA 5000 Series XS Cross Drilled and Slotted Brake Ring; Front is engineered for superior braking performance by enhancing heat dissipation and resistance to brake fade. It is ideal for high-performance street vehicles, track days, and racing applications, ensuring consistent and reliable stopping power under demanding conditions.
Construction and Appearance. Featuring a two-piece design consisting of a high carbon cast iron ring and an aerospace-grade aluminum hat made from T6061-T6 aluminum. The brake ring surface is cross-drilled and slotted with a black-painted, anti-rust finish on non-friction areas to improve durability and aesthetics while reducing heat transfer to the wheel hub.
Installation. The brake rings are a direct bolt-on replacement requiring no drilling or special modifications. They are secured using precision-machined National Aerospace Standards (NAS) bolts and crimp nuts for a firm assembly.
Warranty. Comes with a 12-month or 20,000-kilometer (approximately 12,000-mile) warranty for peace of mind.
Application. Specifically designed to fit the 2015-2020 Dodge Challenger with 6-Piston Front Calipers.
DBA DBA52910.1XS
CA Residents: WARNING: Cancer and Reproductive Harm
- Diameter 390 Millimeters
- Axle Front
- Quantity Required Per Car 2
- Vane Design KP Vents with Kangaroo Paw vein design for enhanced heat dissipation
- Height 34 Millimeters
- Brake Disc Thickness 34 Millimeters
- Minimum Thickness 32 Millimeters
- Centering Diameter 205 Millimeters
- Number Of Holes 10
- Pitch Circle Diameter 229 Millimeters
- Surface Design Cross Drilled And Slotted, symmetrical for bi-directional use
- Two Piece Design Allowing Economical Replacement
- Aluminium Hat Made From Aircraft Grade 6061 T6
- Anti Rust Painted Non Friction Areas
- Thermal Stability Profiling For Increased Durability
- Thermal Efficiency Via Centre Splitting Core Castings
- CBN (Cubic Boron Nitride) Machine Turned Finish To Reduce Disc Thickness Variation and Minimize Pad Knock
- National Aerospace Standards Bolts And Nuts
| Brand | DBA |
| Rotor Location | Front |
| Rotor Type | Drilled and Slotted |
