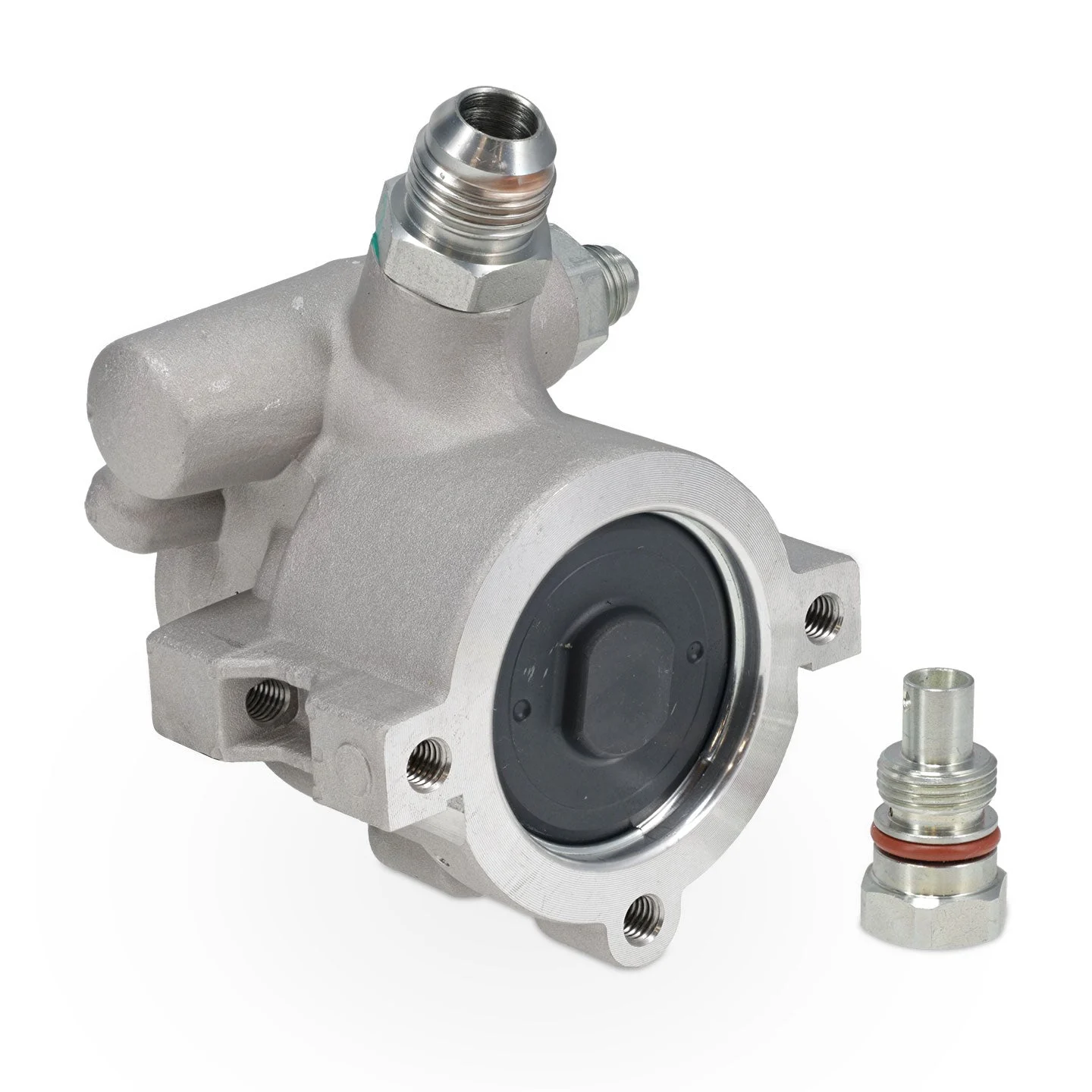

GM Type II Power Steering Pump for Coyote Front Drive Assembly

Description

GM Type II Power Steering Pump for Coyote Front Drive Assembly

This GM Type II style aluminum power steering pump is designed for use with Coyote front drive assemblies and applications requiring a remote-mounted reservoir. Commonly referred to as a Type II or TC pump, it provides reliable hydraulic performance in a compact and lightweight package. The pump is supplied with a natural cast aluminum finish.

The pump features three mounting bosses with 5/16 inch threaded holes. If pass-through bolts are required by the mounting bracket, the bosses can be easily drilled to remove the remaining threads. This flexibility allows compatibility with a variety of bracket designs.

Equipped with a -6 AN pressure outlet and a -10 AN return fitting, this pump supports high-flow hydraulic systems and is well suited for performance steering applications. While intended for Coyote front drive systems, it can also be adapted for other applications with the correct pulley, mounting brackets, and remote reservoir.

Features

• GM Type II or TC style aluminum power steering pump
• Designed for use with Coyote front drive assemblies
• Requires remote-mounted reservoir, sold separately
• Natural cast aluminum finish
• Three mounting bosses with 5/16 inch threaded holes
• Mounting bosses can be drilled for pass-through bolt applications
• -6 AN pressure outlet fitting
• -10 AN return fitting

Specifications

• Flow rate: 3.0 to 3.5 GPM
• Maximum pressure: Up to 1500 PSI

This pump offers a versatile and high-performance solution for modern steering systems and can be adapted to multiple vehicle platforms when paired with the appropriate supporting components.
