Description
To Greater Heights. Stand out among the rest with an added lift height to your truck and a new aggressive look with the Zone Offroad 4-Inch Front/2-Inch Rear Suspension Lift Kit with FOX Shocks. Experience enhanced handling performance, better off-road protection, a more comfortable ride, and an eye-catching new look with a clearance that can handle up to 35 inches of tires.

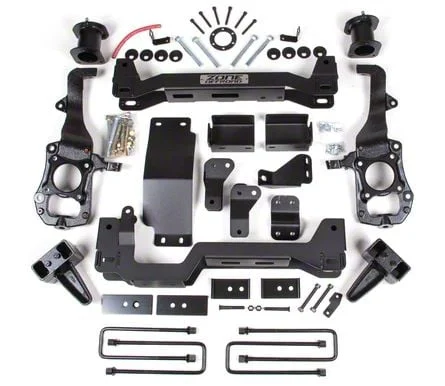

Heavy-Duty and Long-Lasting. This kit comes complete with all you need: highly durable cross-members and steering knuckles, shock absorbers, as well as strut spacers, and a rear block kit to level out the stance. The components are made of premium-quality steel and finished with powder coating for long-lasting protection from rust and corrosion.
Installation. Advance mechanical expertise is required to install this kit which will take around 6-8 hours. To aid in a trouble-free installation, this kit comes complete with all the parts, accessories, hardware, and instructions needed.
Warranty. A Limited Lifetime Warranty backs this product against manufacturing and material defects. A 5-Year/60,000-Mile Drivetrain Warranty is also included when you purchase this product.
Application. The Zone Offroad 4-Inch Front/2-Inch Rear Suspension Lift Kit with FOX Shocks is compatible with all 2021-2026 4WD Ford F-150 models without CCD System, excluding PowerBoost, Powerstroke, Raptor, and Tremor.
IMPORTANT NOTES
- Will fit models with Auto 4wd that do NOT have the 4WD actuator hub assembly
- Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft. (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift.”
- 18″ or larger diameter wheels required. Stock 17″ and 18″ wheels cannot be reinstalled. Stock 20’ wheels can be used with up to a 305/60R20 tire.
- 18″ wheels with 5-5.5″ backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 18 – 20″wheels with 5.5-5.75″ of backspacing is highly recommended for tire to frame crash bar clearance. 37″ tires will require crash bar modification
- Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit).
- Block kits replace factory 1-1/4” block. Stock block will not be reinstalled.
- Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety.
- Will not work with trucks equipped with CCD (Continuous Controlled Damping)
- Does not fit diesel models.
- Will not fit Tremor models.
- Requires frame bracket modification
- This system has not been tested on models equipped with Ford BlueCruise
Zone Offroad ZONF99F
CA Residents: WARNING: Cancer and Reproductive Harm
- Suspension Lift Kit
- Lift Height: 4-Inch Front, 2-Inch Rear
- Includes FOX Shocks
- Maintain Ride Quality and Handling Performance
- Clearance Up to 35-Inch Tires
- Steel Construction
- Powder-Coated Finish
- Complete Kit for Easy Installation
- Limited Lifetime Warranty
- Five-Year/60,000-Mile Drivetrain Warranty
- Fits 2021-2026 4WD Ford F-150 Models without CCD System, Excluding PowerBoost, Powerstroke, Raptor, and Tremor
| Brand | Zone Offroad |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fox |
